70-1-3646 (7 axis)

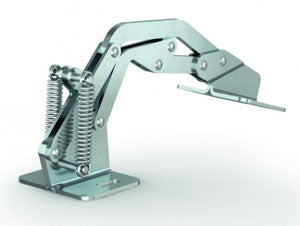

70-1-3646 concealed sprung hinge - 7 axis - 110° opening

  • For surface mounted doors or nested doors.
  • For horizontal application only.
  • Fixing plate in steel, zinc plated finish.
  • Opening spring force: 3.2 N.m.
  • Closing spring force: 3.8 N.m.

View product video for 7 axis concealed PINET hinge available from FDB Panel Fittings

For full datasheet see below.
Please contact us for large quantities.

View datasheet for 70-1-3646 concealed sprung hinge
