9/00418

Non-Stock item; please contact us for availability.

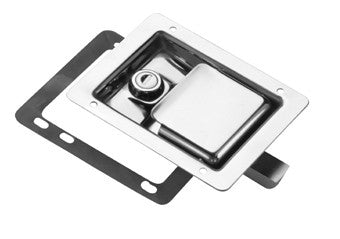

9/00418 Paddle handle

  • Flush mounting
  • Slam action
  • Pierced rim - gasket included
  • Stainless steel AISI 304

A Case length 140 mm
B Case width 108 mm
C Hole centres 95 mm
D Hole centres 94 mm
E Bolt projection (max) 28 mm
F Bolt depth 22 mm
G Bolt width 19 mm
H Hole sizes (diameter) 5 mm
J Maximum depth 40 mm
K Recess length 105 mm
L Recess width 76 mm
